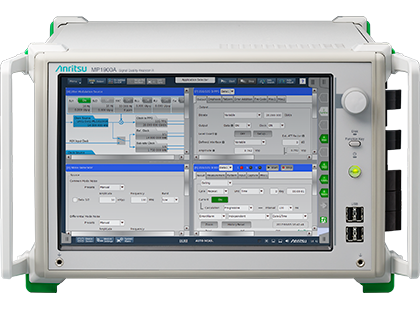

MP1900A is an all-in-one, modular signal quality analyzer (BERT) designed for high-speed interface receiver testing in applications such as AI servers and Ethernet switches. Its flexible modular architecture allows easy configuration for various applications and supports automated receiver tests in cooperation with oscilloscopes from multiple leading vendors, helping customers accelerate the deployment and validation of next-generation interfaces like PCI Express Gen6.

The newly released MU196060A test module is dedicated to PCIe testing, featuring a built-in Clock Recovery Unit (CRU). Compared to conventional test setups, it significantly simplifies the configuration and cabling process, resulting in improved test efficiency and usability.

Key Technical Innovations:
- Comprehensive support for high-speed interface standards: Covers a wide range of protocols including PCIe 1.0 to PCIe 6.0/7.0, USB 3.2/4.0, and 400G/800G/1.6T Ethernet.
- Modular and fully integrated architecture: Combines a Pulse Pattern Generator (PPG), Error Detector (ED), high-precision jitter sources (SJ, RJ, SSC, BUJ), LTSSM analysis, and CRU functions in a single platform.
- High accuracy and repeatability: Delivers 115 fs rms residual jitter and 15 mV input sensitivity, providing industry-leading measurement stability.
- Full support for PAM3 / PAM4 modulation: Enables validation of next-generation signaling requirements such as PCIe 6.0 and USB4 v2.0.
- FEC encode/decode verification capability: Assists customers in performing complete system-level functional validation.
